Salients features and Benefits General Specifications
Identification Codes Ordering Information

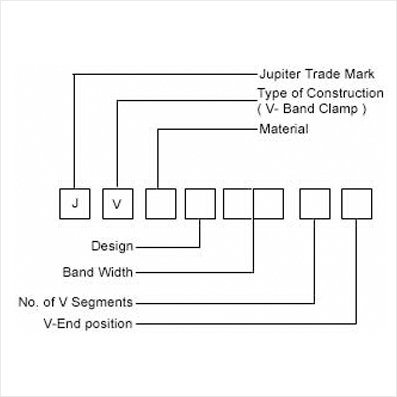

Identification Codes

In order to differentiate the applications or designs Jupiter Clamps generally have their own identification type code as under ----


Identification Codes

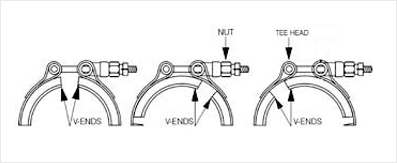

V-End Position

V-End Position

ILLUSTRATIONS

JV 7A 3C
V-Band Clamp with
3 segments


JV 7A 3CV band clamp with 3 segments

JV 7B 3N
V-Band Clamp with
3 segments

JV 7B 3NV band clamp with 3 segments

JV 7C 2C
V-Band Clamp with
2 segments


JV 7c_ 2CV band clamp with 2 segments

JV 7D 1C
V-Band Clamp with
1 segment

JV 7D  1C V-Band Clamp with

JV 7E 4C
V-Band Clamp with
twin opposed bolts &
4 segments


JV 7E 4C V Band Clamp withtwin opposed bolts 4 segments

JV 7F 4C
V-Band Clamp with
twin bolts &
4 segments

JV 7F 4CV Band Clamp withtwin bolts 4 segments

JV 7G 3C
V-Band Clamp
Quick opening type with
3 segments

JV 7G 3CV Band Clamp Quick opening type with 3 segments

JV 7H 3H
V-Band Clamp
Quick opening type
with
3 segments

JV 7H 3HV Band ClampQuick opening type with 3 segments

JV 7I 2C
V-Band Clamp
Quick opening type
with
2 segments

JV 7I 2CV Band Clamp Quick opening type with 2 segments

JV 7J 2H
V-Band Clamp
Quick opening type
with
2 segments

JV 7J 2H V-Band Clamp

JV 7K 3N
V-Band Clamp Quick opening type with Hinge &
3 segments

JV 7K 3NV Band Clamp Quick opening type with Hinge 3 segments

JV  7L 3H
V-Band Clamp with Worm Drive Band & 3 segments

JV 7L 3HV Band Clamp with Worm_Drive_Band_3_segments

JV  7M 1C
V-Clamp with 1 segment without band

JV 7M 1CV Clamp with 1 segment without band

JV  7N 2C
V-Clamp with twin bolts &
2 segments without band

JV 7N 2CV Clamp with twin bolts 2 segments without band

JV  7O 1C
V-Clamp of 1 segment & standard Nut Bolt without band

JV 7O 1CV Clamp of 1 segment standard Nut Bolt without band

JV  7P 2C
V-Clamp with 2 segments & 2 standard Nut Bolts without band

JV 7P 2C V Clamp with 2 segments 2 standard Nut Bolts without band

JV  7Q 8C
V-Band Clamp with 4 bolts & 8 segments in rectangular shape

JV 7Q 8CV Band Clamp with 4 bolts 8 segments in rectangular shape
